The Neff Z861KR1 is a recirculation starter kit for kitchens fitted with an integrated ventilation module in the cooktop, designed for worktop depths of 60cm or larger. It provides the ducting components needed to route air from the hob down into the plinth area, rather than up through the wall or ceiling, which suits kitchens where external ducting is not practical.

This is a hidden-away part of the kitchen, tucked behind cabinetry below the worktop, but it plays a key role in how well your induction hob with built in extraction actually performs day to day.

Key

Benefits

• Suits kitchens where ducting outside is difficult, such as island units or runs without an external wall nearby.
• The diffusor element spreads outflowing air along the plinth area, helping steam and cooking odours disperse rather than pooling under one cabinet.
• Includes both 90° "S" and "L" bow elements, giving flexibility to route ducting around the internal cabinet structure and services below the worktop.
• Connector sleeves allow the flat duct elements to be joined and extended, so the kit can be adapted to the actual cabinet layout on site.
• Supports worktop heights up to 960mm, which covers most standard and slightly raised worktop installations.
• Black plastic construction sits neatly out of sight within the plinth void and is not visible in daily use.

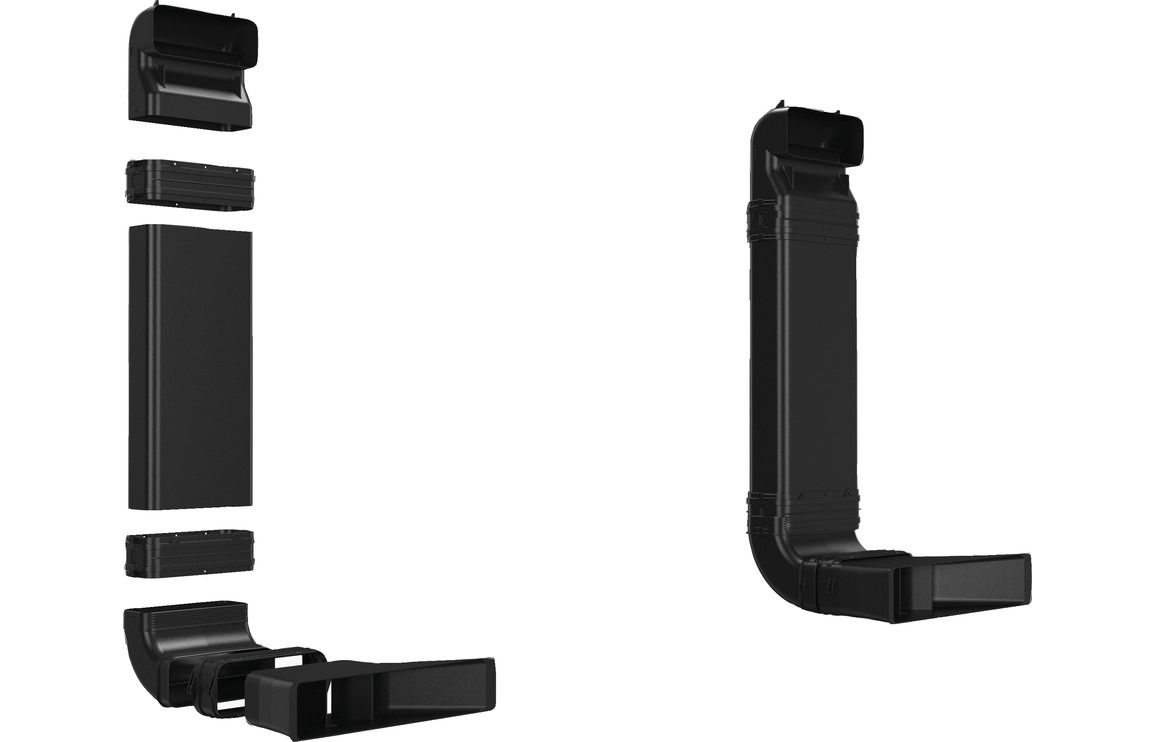

What's Included

• Vertical 90° "S" bow flat duct element (male)
• 3x Connector sleeve (female) for joining flat duct elements
• Straight tube element, male, 500mm
• Vertical 90° "L" bow flat duct element (male)
• Diffusor element for plinth area air outflow

Specifications

• Type: Ducting Kit
• Ducting Material: Black Plastic
• Suitable Worktop Depth: 60cm or larger
• Maximum Worktop Height: 960mm
• Manufacturer's Guarantee: 1 Year
