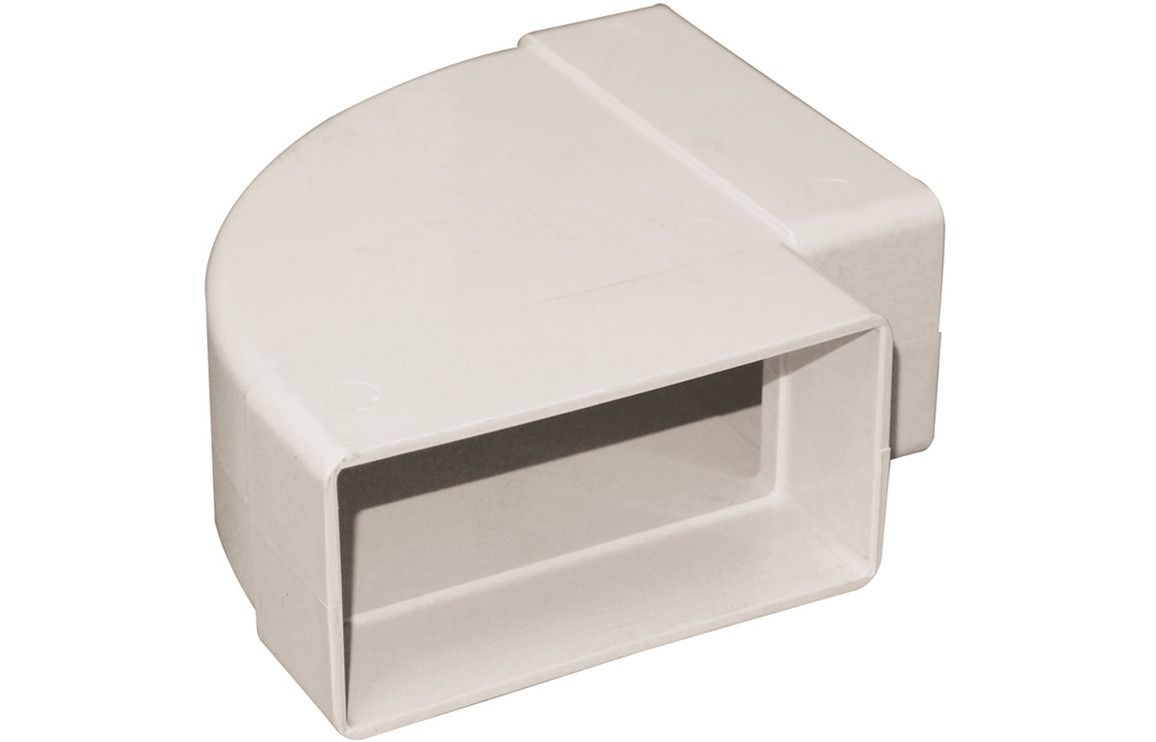

This is a rectangular horizontal 90 degree bend from Manrose, designed to redirect rigid ducting where a straight run is not possible. It is specified for Mastercraft kitchen designs when a cooker hood needs to vent through a wall or ceiling void that does not line up directly above the hob. Fitted above kitchen cupboards, it lets the ducting change direction without dropping ceiling height or interrupting your cabinet line.

Key

Benefits

• Allows the extraction ducting to turn a corner cleanly, useful when the hood position and the external vent are not in a straight line.
• Fits above kitchen cupboards, so the ductwork stays hidden and out of the way of everyday use.
• Female connections make it straightforward to join to standard rigid ducting runs.
• White finish matches typical ceiling and cabinet colours, so it is unobtrusive if any section is ever visible.
• Backed by a 3 year manufacturer's guarantee, giving reassurance on a part that is otherwise difficult to access once installed.

Airflow does lose some pressure as it moves through any bend. At 60 litres per second the pressure loss is 9Pa, rising to 36Pa at 120 litres per second and 80Pa at 180 litres per second. This is worth factoring in when your installer is calculating the total ducting run, particularly if there are several bends between the hood and the outside wall, as each one adds a small amount of resistance that the extraction fan needs to overcome.

Specifications

• Type: Adaptor (90 degree bend)
• Height: 90mm
• Width/Length: 250mm
• Depth: 250mm
• Spigot diameter: 150mm
• Colour: White
• Packaged weight: 5kg
• Manufacturer's guarantee: 3 years
