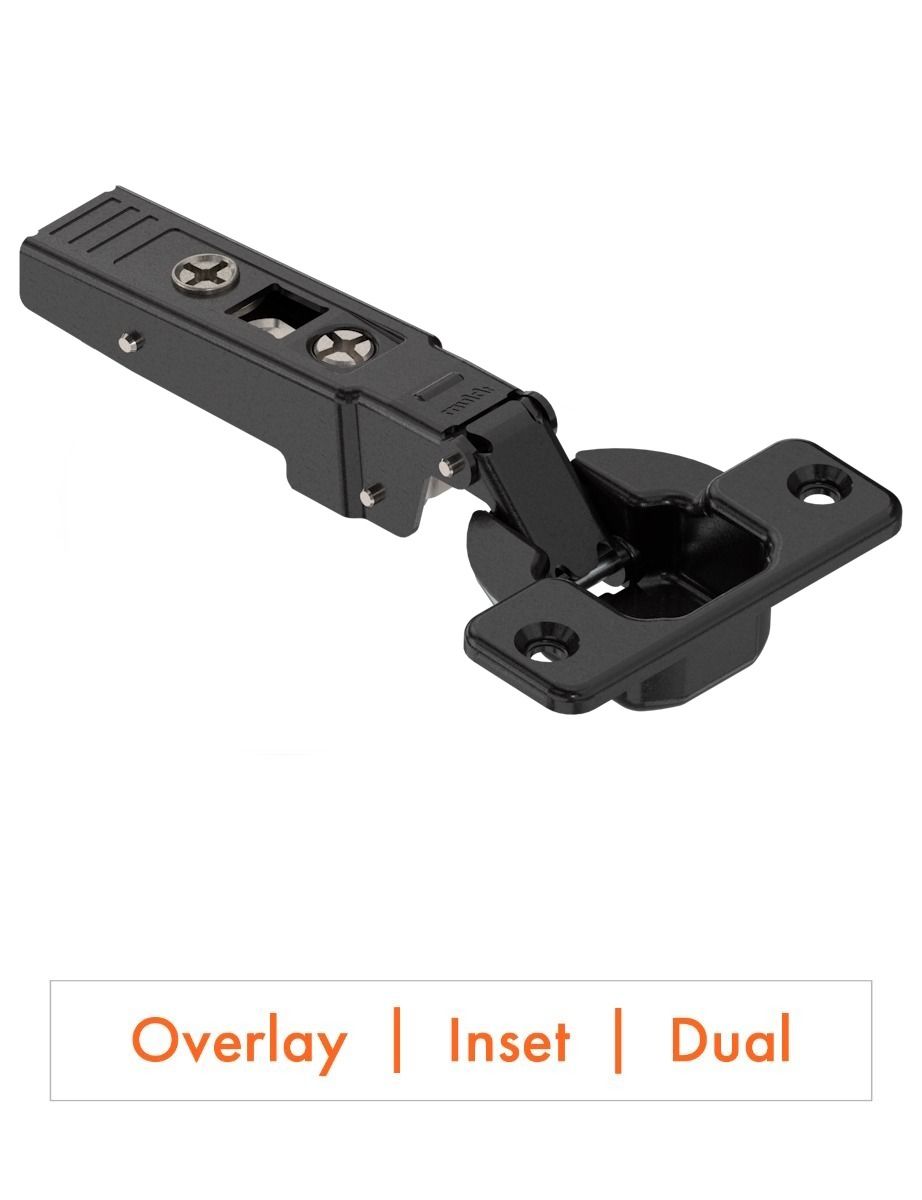

This is Blum's profile hinge designed specifically for thicker cabinet doors up to 32mm and doors with raised or profiled faces. The ONYX finish provides a dark, sophisticated appearance that works particularly well with contemporary kitchen designs.

Where It Fits

You'll find these hinges on overlay cabinet doors throughout your kitchen, from wall units to tall larder cabinets. They're particularly suited to kitchens with chunky door styles or doors that have routing, raised panels, or other profile details that standard hinges cannot accommodate.

How It Works

The hinge opens to 95 degrees, giving you good access to the cabinet interior while keeping the door clear of adjacent units. Blum's CLIP mechanism lets you attach and remove doors without tools, simply by clipping them on and off the mounting plates. The three-dimensional adjustment system uses spiral screws for fine-tuning, allowing 3mm depth adjustment, 3mm height adjustment either way, and 2mm side adjustment.

Why It Matters

The tool-free door removal makes future maintenance much simpler. If you need to adjust doors after installation, perhaps due to settling or seasonal movement, the precise adjustment range means doors can be perfectly aligned. The 32mm door capacity opens up design possibilities with chunkier, more substantial door styles.

Design Consideration

This hinge works well when you want clean lines and reliable operation, but it doesn't include integrated soft-close. If you prefer doors that close gently on their own, you would need to add Blum's separate BLUMOTION soft-close mechanism. The unsprung design means doors will stay where you position them but won't self-close.

Build Quality

The steel construction with ONYX coating provides durability and corrosion resistance. Blum backs these hinges with a lifetime guarantee, reflecting their confidence in the mechanism's longevity. The CLIP system has been proven reliable across millions of installations.

Options

This particular hinge comes in the ONYX finish, but the same mechanism is available in other finishes to match different hardware schemes. You can combine it with BLUMOTION soft-close or TIP-ON opening systems if required.

Installation Requirements

Each hinge requires a separate CLIP mounting plate, which attaches to the cabinet side. The mounting plates are sold separately and must be specified to match your cabinet construction and door overlay requirements.
